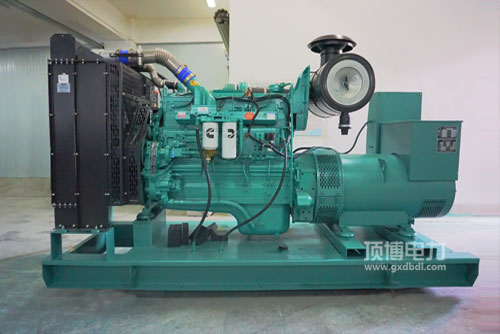

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用打着机燃料划算性好: 优秀的燃料把握程序，独具特色的STC、ESTC 分级制度把握程序，特异设计制作的活塞式顶端丙烷冷却系统，高压低压压喷射燃料，彻底的吸雾，丙烷引燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用启心理瞬态性优质: 完美无缺的启心理总体设计制作，协调康明斯奇特的EFC系统软件，控住高精性强，崩溃日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用启行为升马力高: 局部制作紧凑型suv.看上去分布恰当，开机运行有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50需要满足中国有非道路交通第四时段及北美地区Tier2. Tier 3摆放规范请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可求性好， 汽车发因素操作及维护调养调养快捷，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率超范围 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯电站用打火机的性能：量小， 降低比较高， 防雨百叶空气的高温，更能进行，走动车截电的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启主观因素尺寸	较为常用马力(kW)Prime Power	备用电源公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
